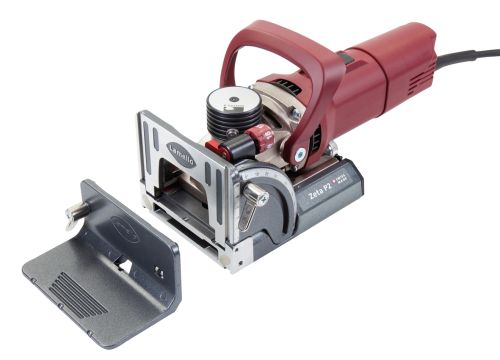

The Zeta P2 is the profile biscuit joiner for P-System anchorage, and the Clamex P connector range in particular, and is used to connect wood materials.

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centre-piece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

The Zeta P2 can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

Price Ranges from $1,650.00 to $1,895.00

Price: $1,650.00
    Option:


    Update price
    Quantity:

    Description

    Function

    The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process security and reliability with a low-wear, fully mechanical construction.

    The Zeta P2 can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.

    Benefits

    • Extremely fast joining method using a power tool
    • Rapid, simple and precise working in the familiar manner like with Lamello biscuit joiners
    • Identical grooves on both work pieces, saving time by removing the need for depth adjustments and minimising the risk of errors
    • Fitting installation with innovative profile groove technology greatly reduces labour time while also negating the need for additional fastening materials
    • 5 different cutting depths for various connecting fittings
    • Also compatible with biscuits and other 4 mm fittings

    Applications

    • Ideal for wood shops without stationary equipment for connecting fittings
    • Rapid glueing aid for a wide range of angle joints
    • Production of objects with varying angles in minimal setup time
    • Rapid prototype construction by companies using CNC machines
    • On-site adjustments and assembly
    • All wood materials and panels as well as composite materials such as solid surfaces or HPL
