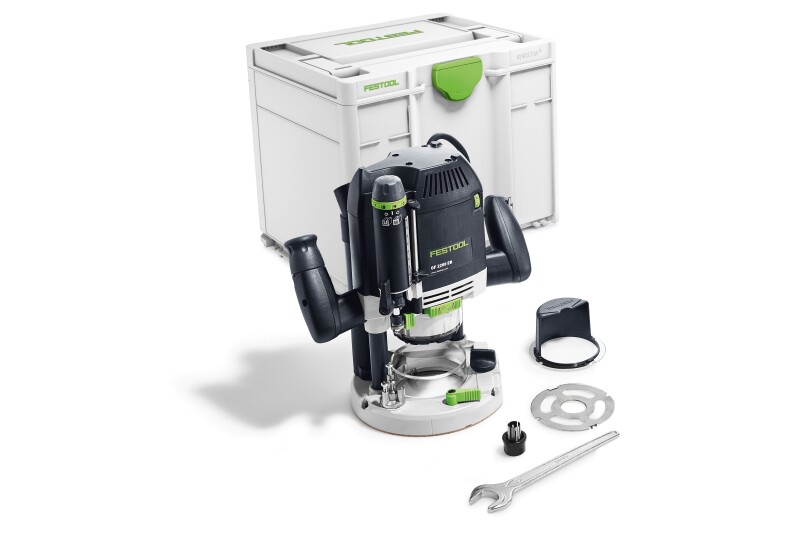

Includes
- dia. 1/2" clamping collet (12.7 mm)
- chip catcher
- open ended spanner, WAF 24
- Systainer SYS3 M 337
Functions
You might even think it is a portable shaper
The OF 2200 is our most powerful router. It can easily plunge into 8/4 hard maple and make a 1/2" groove in a single pass. With 2200 watts of power, you might think you are working with a portable shaper. Designed for exceptional maneuverability, the OF 2200 incorporates many new ergonomic design features, making it easy to control, and a pleasure to use on the jobsite or in the shop.
Includes 1/2" collet only. 8mm and 1/4" collets available separately.
This is the new imperial version of this tool. It is identical to the previous version with the exception of the units on the depth scale.*OF Routers produced after 2021 are NOT compatible with the Router Table CMS and all variations.
Idle engine speed 10 000 - 22 000 RPM
Max. cutter diameter 3-1/2" (89 mm)
Routing stroke 3-5/32" (80 mm)
Weight 18.30 lbs (8.3 kg)
Routing depth fine adjustment range 3/4" (20 mm)
Drive type 120 VAC
Collet dia. 1/4" - 1/2" (6 - 12.7 mm)
Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)
Cable length 13.123 ft (4 m)
Power consumption 2 200 watt
