for TS 60 K, TSV 60 K, CSC SYS 50
Functions
Quality cuts better.
Durability and precision under the toughest conditions. Adapted to the application and material. Made from high quality steel with saw teeth made from fine grain carbide. After all, you can only achieve a perfect cut when the saw blade is as good as the machine.

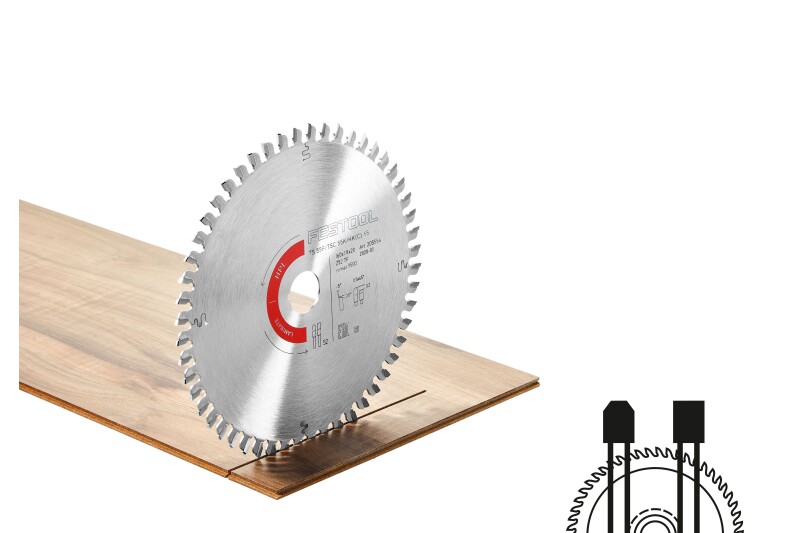

- Trapezoidal/flat tooth circular saw blade for processing plastic materials
- Ideal in combination with the Festool TS 60 K plunge-cut saw – for exact, efficient working
- Fine-grain carbide-tipped saw teeth – for optimum sawing performance and perfect cuts
- Slightly negative rake angle for long service life on very hard plastics
- Cutting angle and tooth shape are adapted to the application and machine
- Color coding makes it easier to select the correct saw blade
- for laminate, coated panels, acrylic glass, melamine resin boards and solid surface
Usage
Main applications
- Cutting laminate/HPL
- For machining coated panels, melamine resin boards (Trespa ®), solid suraface, acrylic glass and phenolic-resin-bonded fibers and fabrics
No. of teeth 52.00
Chip angle -5.00 °
Tooth shape TC
Relief angle 20.00 °
Diameter 6.61" (168 mm)
Hole dia. 0.79" (20 mm)
Standard blade thickness 0.05" (1.2 mm)
Cutting width 0.07" (1.8 mm)
