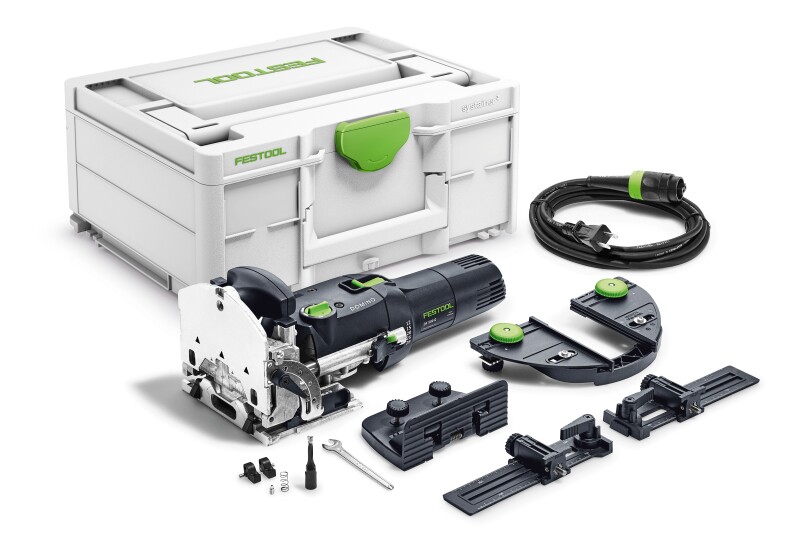

Includes
- DOMINO DF 500 7/32" (5 mm) cutter
- Support Bracket
- Trim STOP
- cross Stop
- open ended spanner, WAF 8
- plug it-power cable (4 m)
- Systainer SYS3 M 187
Functions
DOMINO Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining
- Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.
- Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.
Idle engine speed 24 300 RPM
Mitre routing 0 - 90 °
Max. routing depth 1-1/16" (28 mm)
Dust extraction connection dia. 1-1/16" (27 mm)
Weight 7.72 lbs (3.5 kg)
Drive type 120 VAC
Routing height adjustment 1/8" (5 mm) - 1-3/16" (30 mm)
Cable length 13.123 ft (4 m)
DOMINO slot cutter dia. 3/16" (4 mm)/1/8" (5 mm)/1/4" (6 mm)/5/16" (8 mm)/3/8" (10 mm)
Power consumption 420 watt
Depth stop for routing depth 12, 15, 20, 25, 28 mm
