for TS 60 K
Functions

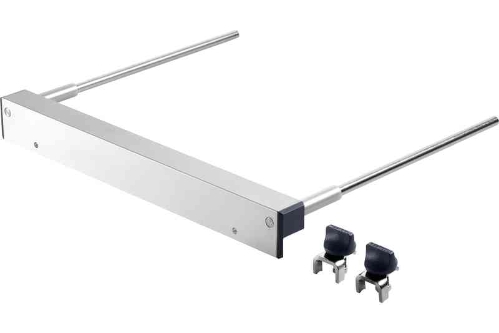

Parallel cuts made easy.
The parallel stop makes it easy to produce parallel cuts along the edge of the workpiece.
- Ideal for ripping longer workpieces
- Material widths can range from 7-1/2" (190 mm) to 13" (330 mm) when connect to the motor side of the saw
- Material widths can range from 1-7/16" (37 mm) to 6-1/8" (155 mm) when connected to the saw blade side of the saw
- Lower overhang below saw base: 9/16" (15 mm)
- Can also be used as table extension
- Parallel guide, guided on both sides
Usage
Main applications
- Ripping boards and panel materials
- Creating parallel grooves
Max. workpiece width 13" (330 mm)
Min. workpiece width 1/8" (3 mm)
