for KSC 60
Functions
Precise results with every cut.

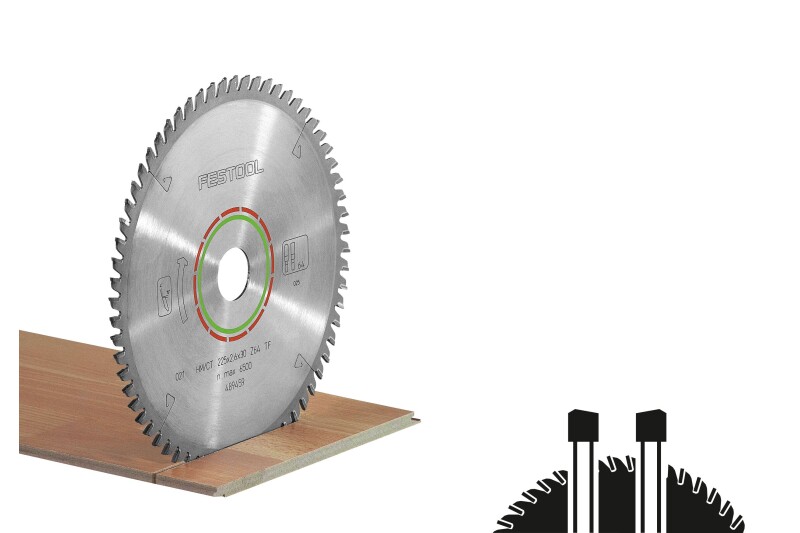

Resilient, precise and perfectly adapted to the machine and material: The LAMINATE/HPL saw blade is the preferred choice for cutting laminate and solid surface materials. All elements are designed together as a finely tuned system to provide optimum cut quality.
- The systematic solution for work with laminate and boards bonded with melamine resin
- Saw teeth made of high-quality carbide – for optimum saw performance and perfect cuts
- Tooth geometry optimized for high performance for the application and specifically designed for this machine
- Color coding makes it easier to select the correct saw blade
Usage
Main applications
- LAMINATE/HPL For machining coated panels; Laminate panels, solid surface materials, phenolic-resin-bonded fibres and fabrics
Diameter 216 mm
No. of teeth 60.00
Chip angle -5.00 °
Standard blade thickness 1.60 mm
Tooth shape TC
Hole dia. 1-3/16" (30 mm)
Cutting width 3/32" (2.3 mm)
Diameter 8-1/2" (216 mm)
