for TS 55 F, TSC 55 K, HK 55, HKC 55
Functions
Quality cuts better.

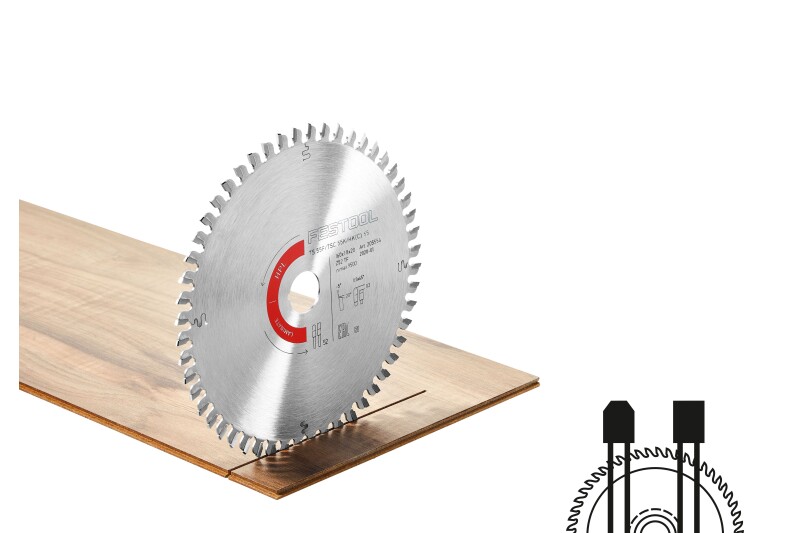

Durability and precision under the toughest conditions. Adapted to the application and material. Made from high quality steel with saw teeth made from fine grain carbide. After all, you can only achieve a perfect cut when the saw blade is as good as the machine.
- The systematic solution for work with laminate and boards bonded with melamine resin
- Saw teeth made of high-quality metal – for optimum saw progress and perfect cuts
- Cutting angle and tooth shape are adapted to the application and machine
- Color coding makes it easier to select the correct saw blade
- For laminate, coated panels and solid surface
Usage
Main applications
- Laminate/HPL. For machining coated panels, laminate panels, melamine hard panels, solid surface, and phenolic-resin-bonded fibres and fabrics
- It is the ideal solution for precise, efficient work when used together with Festool TSC 55 K plunge-cut saw, as well as with the HK 55 and HKC 55 – for precise, efficient work
No. of teeth 52.00
Chip angle -5.00 °
Tooth shape TF
Relief angle 20.00 °
Hole dia. 4/5" (20 mm)
Cutting width 0.070 in (1.8 mm)
Diameter 6.29 in (160 mm)
Standard blade thickness 0.05" (1.2 mm)
